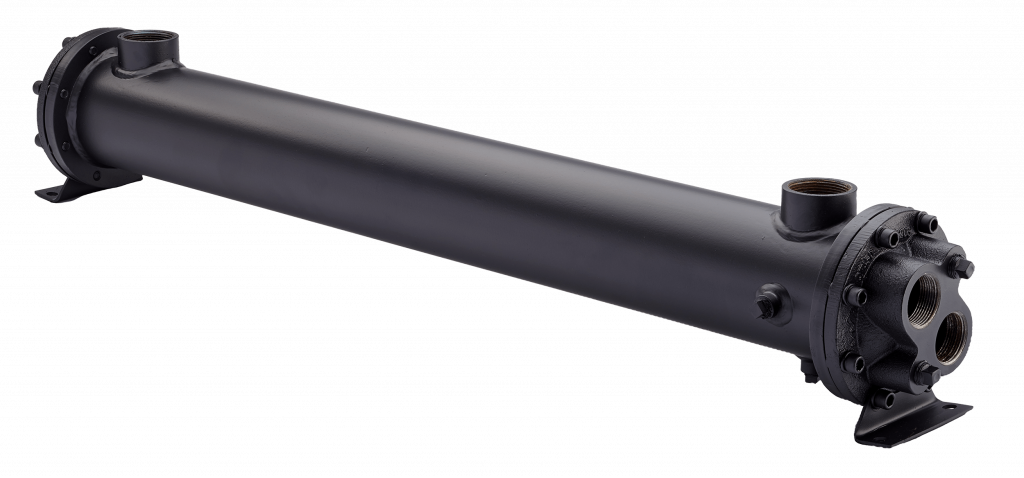

HC Series
THERMAL TRANSFER PRODUCTS INDUSTRIAL HYDRAULIC OIL COOLERS
API Heat Transfer’s full line of Thermal Transfer Products offers a standard catalog hydraulic oil coolers for all industrial machine hydraulics for system cooling.
Industrial Hydraulic Oil Coolers Product Highlights
- Preferred for new oil-water applications
- Rugged steel construction
- Low cost
- NPT, SAE O-Ring, SAE flange, or BSPP shell side connections available
- End bonnets removable for servicing
- Mounting feet included (may be rotated in 90° increments)
Product Options
- Optional material construction on tubes, tubesheets and end bonnets
Customer Focused and Driven
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available
For application help and quoting, visit our Full TTP site or contact ttpsales@apiheattransfer.com.
| Ratings | Maximum Operating Pressure - Shell Side 300 PSI* Maximum Operating Pressure - Tube Side 150 PSI Maximum Operating Temperature 300°F |
| Materials | Tubes - Copper Tubesheet - Carbon steel Shell - Carbon steel Baffles - Carbon steel End Bonnets - Cast iron Mounting Brackets - Carbon steel Gaskets - Nitrile rubber/cellulose fiber Nameplate - Aluminum foil |
